Gaugechart configuration

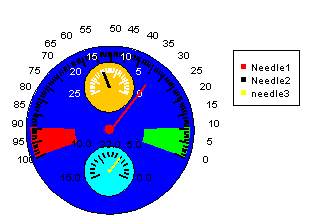

This is a complete example of a gaugechart with 2 subgauges:

*Parameters*	*Description*	*Equivalent php class/property*
YLABEL_COLOR=#FFFFFF Y2AXIS=TRUE YAXIS=TRUE XSCALE_MIN=0 YSCALE_MIN=0 Y2SCALE_MIN=0 XSCALE_MAX=100 YSCALE_MAX=25 Y2SCALE_MAX=15 XAXIS_START_WITH_BIG_TICK=TRUE YAXIS_START_WITH_BIG_TICK=TRUE Y2AXIS_START_WITH_BIG_TICK=TRUE YAXIS_STYLE=2.0\|#FFFFFF\|NORMAL YAXIS_FONT_COLOR=#FFFFFF XAXIS_INTEGER=TRUE YAXIS_INTEGER=TRUE LEGEND_FILL=0xffffff LEGEND_BORDER=0.2\|#000000\|NORMAL SERIE_1=gauge SERIE_2=gauge2 SERIE_3=gauge3 SERIE_TYPE_1=GAUGE SERIE_TYPE_2=GAUGE SERIE_TYPE_3=GAUGE SERIE_DATA_1=33\|15\|5 GAUGE_NEEDLE_1=Needle1 GAUGE_NEEDLE_2=Needle2 GAUGE_NEEDLE_3=needle3 GAUGE_NEEDLE_STYLE_1=#FF0000 GAUGE_NEEDLE_STYLE_2=#000000 GAUGE_NEEDLE_STYLE_3=#FFFF00 SERIE_NEEDLE_STYLE_1=3.0\|#FF0000\|NORMAL SERIE_NEEDLE_STYLE_2=3.0\|#000000\|NORMAL SERIE_NEEDLE_STYLE_3=3.0\|#FFFF00\|NORMAL SERIE_NEEDLE_LENTGH_1=70 GAUGE_RADIUS=0.8 GAUGE_BORDER=2.0\|#000000\|NORMAL GAUGE_AXIS1_LABEL_MARGIN=20 GAUGE_MAX_ZONE=90 GAUGE_MIN_ZONE=10 GAUGE_MAXMIN_ZONE_WIDTH=45 GAUGE_MAXMIN_ZONE_MARGIN=4 GAUGE_BACK=#0000FF GAUGE1_ENABLE=TRUE GAUGE1_BACK=#FFC800 GAUGE2_ENABLE=TRUE GAUGE2_BACK=CYAN LEGEND_MARGIN=0.3	X scale is the one of the main gauge Y scale is the one of the orange gauge Y2 scale is the one of the cyan gauge All scales have a big tick at possition 0 Do not paint decimal point The gauge has 3 needles Values to plot Style of the needles Define possition, size and color of the read and green areas (max, min) Activate first subgauge Activate second subgauge	$gaugePlotter->subGauge2->axis1=& $Y2Axis; $gaugePlotter->subGauge1->axis1=& $YAxis; $gaugePlotter=new GaugePlotter() $serie=new GaugeDataSerie($values,$styles); see values in constructor of new GaugeDataSerie; $legend->addItem("Needle 1",$fstyle); see styles in constructor of new GaugeDataSerie; $serie->needleStyle $serie->needleLength $gaugePlotter->radiusModifier $gaugePlotter->maxZone $gaugePlotter->minZone $gaugePlotter->maxminZoneWidth $gaugePlotter->maxminZoneMargin $gaugePlotter->subGauge1=new GaugePlotter(); $gaugePlotter->subGauge2=new GaugePlotter();

The subgauges are enabled with:

GAUGE1_ENABLE to true.
GAUGE2_ENABLE to true.

In this case the last (or last two) value of the SERIE_DATA_1 parameter will be used in the subgauge1 (and/or subgauge2). In this example, the value 15 is used for subgauge1 and the value 5 for the subgauge 2.

Parameters of the gauge marked with (*) can be used to defined the subgauges by adding "1" or "2" to the "GAUGE" word in the parameter's name. For example: GAUGE1_BORDER,GAUGE1_BASE,GAUGE2_BORDER,GAUGE2_BASE and so on.

*Parameters*	*Description*	*Equivalent Php class/property*
YAXIS=FALSE GAUGE1_ENABLE=FALSE GAUGE2_ENABLE=FALSE	remove second scale remove first subgauge remove second subgauge	$gaugePlotter->axis2=null; $gaugePlotter->subGauge1=null; $gaugePlotter->subGauge2=null;

Gaugechart needs at least 1 scale, defined using the XAXIS* parameters. You can define a second scale for the gauge using the YAXIS* parameters. However, if you have defined subgauges, the YAXIS* scale will be used for subgauge1 and the Y2AXIS* scale parameters will be used for subgauge2.

*Parameters*	*Description*	*Equivalent phclass/property*
YAXIS=TRUE YSCALE_MAX=25 YSCALE_MIN=0	Creates second scale (the one in white) Define maximum value Define minimum value	$gaugePlotter->axis2=& YAxis; $gaugePlotter->axis2->scale->max $gaugePlotter->axis2->scale->min

The following parameters are used to configure the green and red areas:

GAUGE_MAX_ZONE(*): Zone above this value will be coloured using MAX_ZONE_COLOR.
GAUGE_MAX_ZONE_COLOR(*): Color used to mark the area near to the maximum in the scale. Default is red.
GAUGE_MIN_ZONE(*): Zone under this value will be coloured using MIN_ZONE_COLOR.
GAUGE_MIN_ZONE_COLOR(*): Color used to mark the area near to the minimum in the scale. Default is green.

*Parameters*	*Description*	*Equivalent Php class/property*
GAUGE_MAX_ZONE=80 GAUGE_MAX_ZONE_COLOR=#ffc800 GAUGE_MIN_ZONE=20 GAUGE_MIN_ZONE_COLOR=CYAN	Orange area starts at pos. 80 Color of max. zone is Orange Cyan area ends at pos. 20 Color of min. zone is cyan	$gaugePlotter->maxZone $gaugePlotter->maxZoneColor $gaugePlotter->minZone $gaugePlotter->minZoneColor

You can also change the size of the circle at the base of the needle.

GAUGE_BASE (*): Size of the circle painted as needle base (% of the radius). Default is 6 which mean 6% of the size of the gauge

*Parameters*	*Description*	*Equivalent Php class/property*
GAUGE_BASE=12	Size of the red circle at the base	$guagePlotter->needleBase

You can change the width of the areas that mark the max and min zones:

GAUGE_MAXMIN_ZONE_WIDTH(*): Width in pixels of the ring for the max and min zones. Default is 50.

*Parameters*	*Description*	*Equivalent Php class/property*
GAUGE_MAXMIN_ZONE_WIDTH=15	width in pixels of the orange and cyan areas (default is 50).	$gaugePlotter->maxminZoneWidth=15;

You can change the margin of the areas that mark the max and min zones:

GAUGE_MAXMIN_ZONE_MARGIN(*):Margin, in pixels (distance to border) of the min/max area. Default is 5.

*Parameters*	*Description*	*Equivalent Php class/property*
GAUGE_MAXMIN_ZONE_MARGIN=0	Cero means, the area starts at the border.	$gaugePlotter->maxminZoneMargin=50;

The following parameters are used to change the start and end possition (angles) of the gauge:

GAUGE_START_ANGLE: Start angle of the scale of the gauge (default is -20). In order to draw a semicircular gauge you must use 0 as start angle and 180 as end angle.
GAUGE_END_ANGLE(*): End angle of the scale of the gauge (default is 200).

*Parameters*	*Description*	*Equivalent php class/property*
GAUGE_START_ANGLE=10 GAUGE_END_ANGLE=170	Scale starts at angle 10 and ends at angle 170	$gaugePlotter->startAngle=10; $gaugePlotter->endAngle=170;

In order to change the possition of the labels of the scale you must use:

GAUGE_AXIS1_LABEL_MARGIN(*). Labels margin (in pixels) of the main scale. Use positive/negative to place the labels outside/inside the circle.Default value is 10 (pixels outside the gauge).
GAUGE_AXIS2_LABEL_MARGIN(*): Labels margin (in pixels) of the second scale. Use positive/negative to place the labels outside/inside the circle. Default value is -20

*Parameters*	*Description*	*Equivalent Php class/property*
GAUGE_AXIS1_LABEL_MARGIN=7 GAUGE_AXIS2_LABEL_MARGIN=5	Possition of the white labels are 5 pixels outside the scale.	$gaugePlotter->axis1LabelMargin $gaugePlotter->axis2LabelMargin

These parameters are used to change the possition of the scale:

GAUGE_AXIS1_MARGIN (*): Margin of the main scale (in pixels). Distance in pixels between border and ticks, the default is 5.
GAUGE_AXIS2_MARGIN (*): Margin of the second scale (in pixels). Distance in pixels between border and ticks of the second scale, the default is 40.

*Parameters*	*Description*	*Equivalent Php class/property*
GAUGE_AXIS1_MARGIN=-4 GAUGE_AXIS2_MARGIN=20 GAUGE_AXIS1_LABEL_MARGIN=7 GAUGE_AXIS2_LABEL_MARGIN=5	Ticks start 4 pixels outside the gauge. Ticks start 20 pixels inside the gauge. Labels are 7 pixels outside the scale..	$gaugePlotter->axis1Margin $gaugePlotter->axis2Margin $gaugePlotter->axis1LabelMargin $gaugePlotter->axis2LabelMargin

The size of the gauge and subgauges can be defined with:

GAUGE_RADIUS: Size of the radius gauge, Value between > 0 and < 2. Default is 1.
GAUGE_BORDER (*): Line style of the border of the pie.

*Parameters*	*Description*	*Equivalent Php class/property*
GAUGE_BORDER=0.2\|#FF0000\|NORMAL GAUGE_RADIUS=0.6	Red border of the gauge (also GAUGE1_BORDER, GAUGE2_BORDER) Size of the gauge	$gaugePlotter->border $gaugePlotter->radiusModifier

GAUGE_SUBGAUGE_SIZE: Size of the subgauges in % of the size of the main gauge. Default value is 30.

*Parameters*	*Description*	*Equivalent Php class/property*
GAUGE_SUBGAUGE_SIZE=40	Size of the subgauges	$gaugePlotter->subGaugeSize=40;

GAUGE_BACK(*): Background color. Default is blue.

A gauge can contain up to 2 subgauges. In order to activate the subgauges you must set GAUGE2_ENABLE:

*Parameters*	*Description*	*Equivalent Php class/property*
GAUGE2_ENABLE=TRUE GAUGE2_START_ANGLE=0 GAUGE2_END_ANGLE=180 GAUGE2_BACK=#00FFFF LEGEND_MARGIN=0.3	Activate subgauge 2 Subgauge is a semicircle (angle 0-180)
